Shenzhen Deepintek Co.,ltd

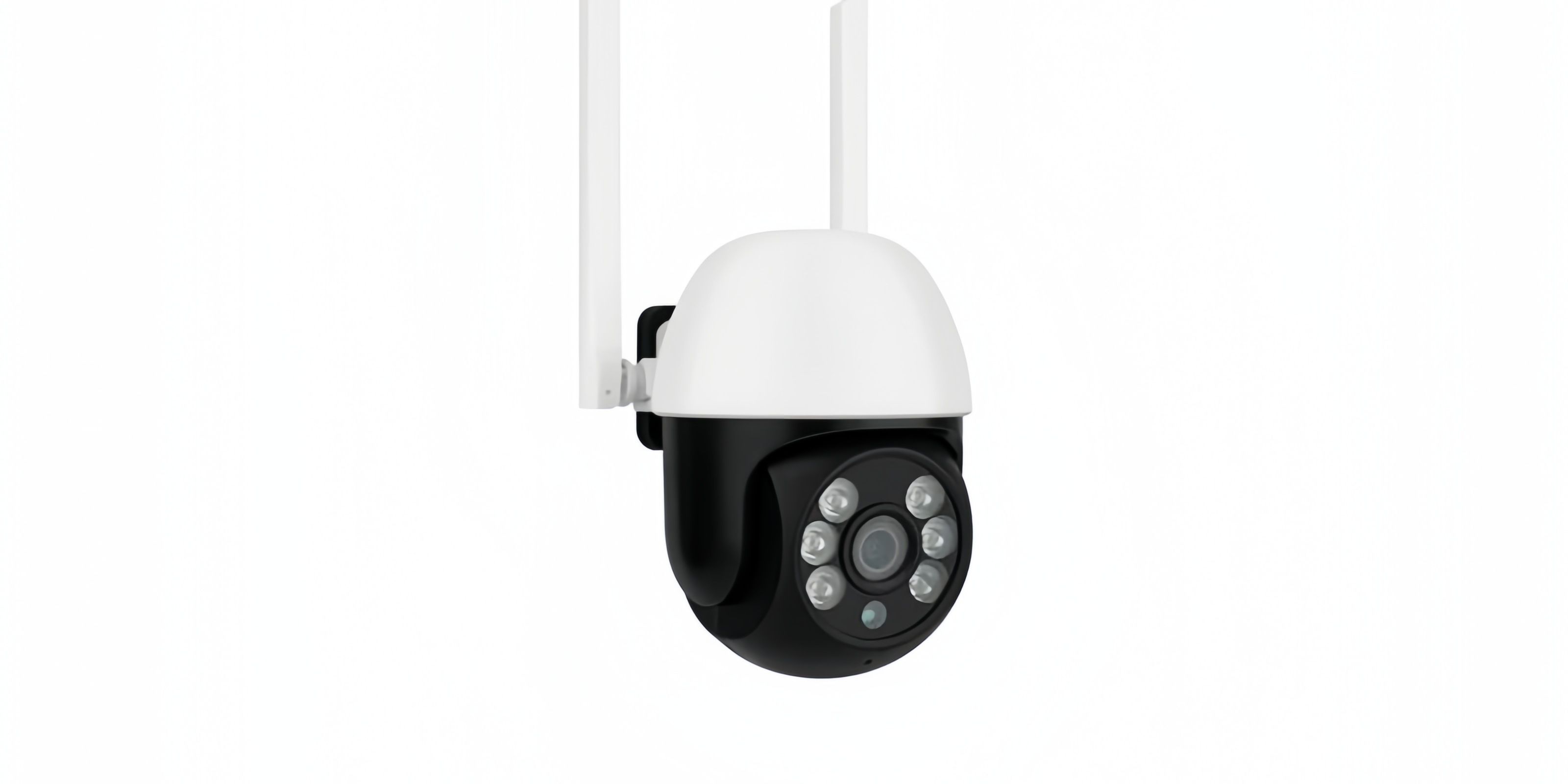

mini ptz camera with YCC365 plus app PK-02


wifi ptz camera both for indoor and outdoor use

System

Main Processor

GK7202V300

Image sensor

GC1034

Operation System

Embedded LINUX OS system

Video

Resolution

2304*1296/640×360

Video Compression

Smart H.265+

P/T Range

Horizontal:355°  ; vertical: 90°

Object tracking

Support

Illumination

0.1LUX/F1.2

Picture Capture

Support

Video Flip

Support

Audio

Coding standard

G.711

Two-way audio

Support

Record management

Video file size

4.5GB-6.5GB/Day

Record Mode

Manual record, motion detection   record, scheduled record, alarm record

Video storage

TF Card/Cloud

Playback, back up

Support

Alarm trigger

Video Push、Alarm recording、screen shot capture ,sending Email

Network

Network Interface

default without RJ45 Port

WIFI

802.11b/g/n/a/ac

Stream

Dual Stream

Network Protocol

Support TCP/IP、RTSP、ONVIF, etc

Transmission mode

P2P ,Cloud Sever

Connection

Sweep QR code,AP Hotspot

Extend

Storage

Maximum support 128GB TF card

Reset key

Support

Power

Power input

DC 5V 1.5A

Power consumption

6W

Working  Environment

Suitable occasion

Home,shop,School,factory

Installation mode

Flat put、Wall mounted、hoisting

Working Temperature

-20℃-+55℃

Working humidity

10%90%

Others

Camera lens

3.6MM

View Angle

90°

Lamp board

Dual light 3 pcs white leds and 3 pcs Infared leds

Product size

1 inch


Support Apps:


1.ICAM 365(Default 5G)

2.YCC365 Plus

3.Tuya Smart



Packing list:

1. Camera( NO TF card)*1

2. Instructions*1

3. DC 5V 1.5A Power*1

4. Crew bag*1

5. 1m power cord*1

6. Bracket *1


Package size:

1pcs:98*85*155(mm)

N.W: 0.33KG

50pcs/ctn

size: 437*310*502(mm)

N.W:17.5KG


Support OEM services ,gift box package ,brand logo print.
