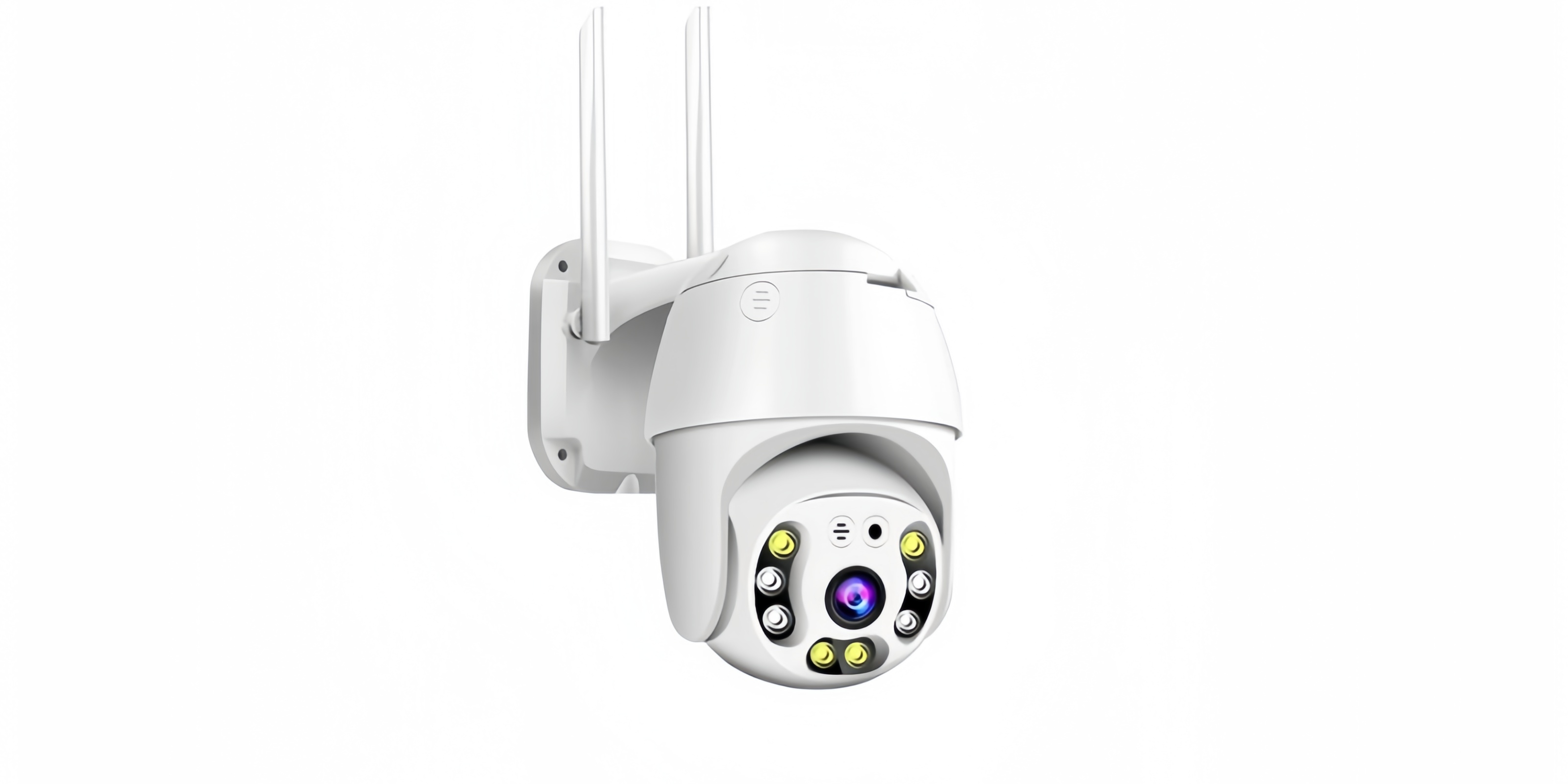

color night vision wireless hidden cctv camera with 8pcs Ir led
System | Main Processor | HC1703 |
Image sensor | GC1346/2306 | |
Operation System | Embedded LINUX OS system | |
Video | Resolution | 720P/1080P |
Video Compression | Smart H.264+ | |
P/T Range | Horizontal:355° ; vertical: 90° | |
Object tracking | Support | |
Illumination | 0.1LUX/F1.2 | |
Picture Capture | Support | |
Video Flip | Support | |
Audio | Coding standard | G.711 |
Two-way audio | Support | |
Record management | Video file size | 2.5GB-4.5GB/Day |
Record Mode | Manual record, motion detection record, scheduled record, alarm record | |
Video storage | TF Card/Cloud | |
Playback, back up | Support | |
Alarm trigger | Video Push、Alarm recording、screen shot capture ,sending Email | |
Network | Network Interface | 1*RJ45 , 10/100M10-100 Base-T, self-adaptable Ethernet port |
WIFI | 802.11b/g/n | |
Stream | Dual Stream | |
Network Protocol | Support TCP/IP、RTSP、ONVIF, etc | |
Transmission mode | P2P ,Cloud Sever | |
Connection | Sweep QR code,Network Cable connection,AP Hotspot | |
Extend | Storage | Maximum support 128GB TF card |
Reset key | Support | |
Power | Power input | DC 12V 2A |
Power consumption | 12W | |
Working Environment | Suitable occasion | Home,shop,School,factory |
Installation mode | Flat put、Wall mounted、hoisting | |
Working Temperature | -20℃-+55℃ | |
Working humidity | 10%-90% | |
Others | Camera lens | 3.6MM |
View Angle | 90° | |
Lamp board | Dual light 4 pcs white leds and 4 pcs Infared leds | |
Product size | 2.5 inch |
Support Apps:
1.YCC365 PLUS( Default)
2.YOOSEE
3.ICAM 365
Packing list:
1. Camera( NO TF card)*1
2. Instructions*1
3. DC 12V 1.5A Power*1
4. Crew bag*1
Package size:
1pcs:195*190*120(mm)
N.W: 0.72KG
30pcs/ctn
size: 620*415*592(mm)
N.W:23KG
Support OEM services ,gift box package ,brand logo print.
