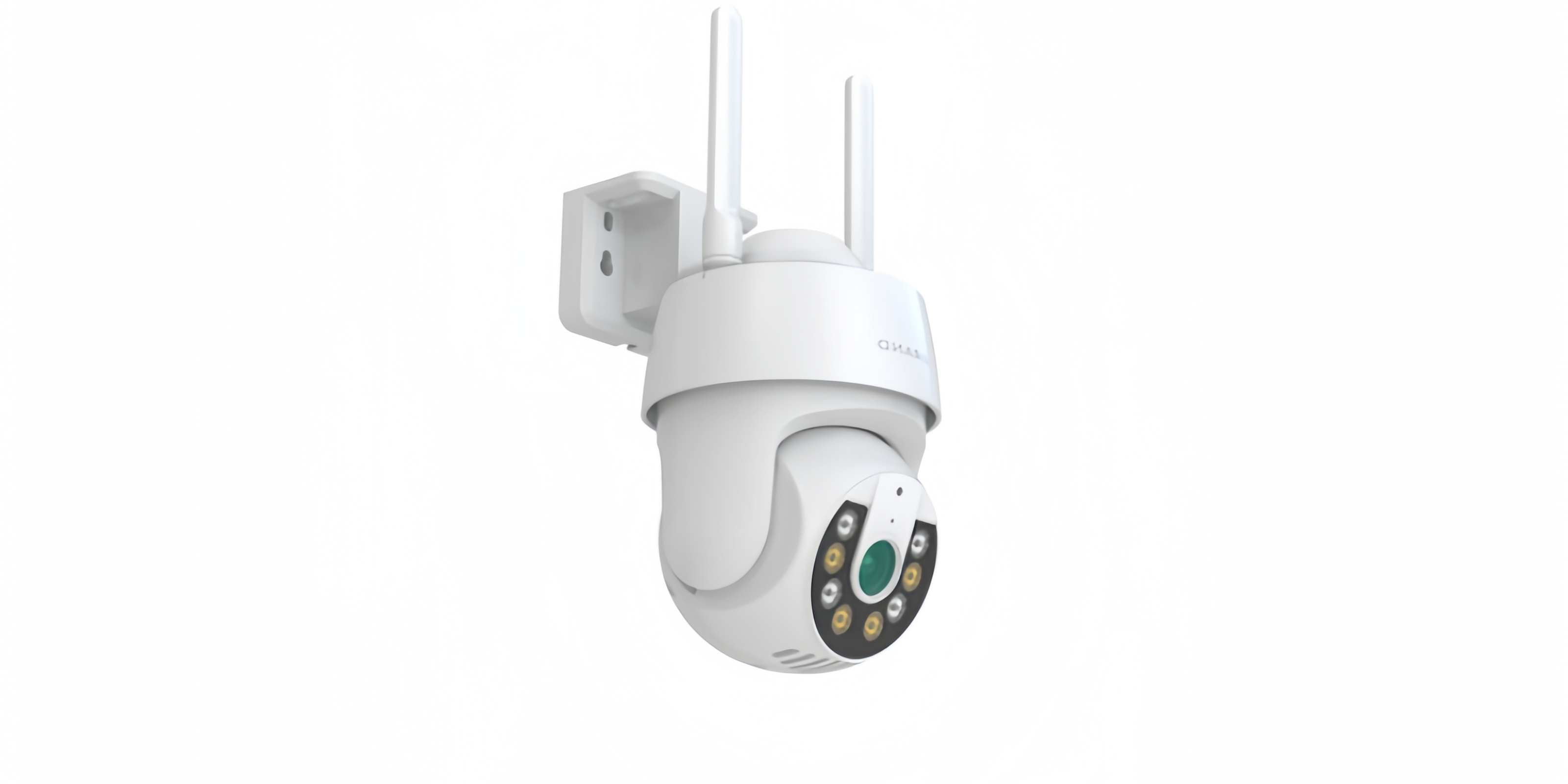

cctv pan tilt zoom camera PK-09

cctv IP camera cheap outdoor cctv cameras with tuya smart app


kernel

Main   control chip platform

 DSP processor Fuhan FH8852V200

Image   sensor

Smartwell   1/2.7" CMOS (SC401AI).

External   interface

interface

Micro   SD  self-elastic interface

Extension   interfaces

IR   light board interface, power supply, horn, microphone, TF card holder,

Reset   switch

Supports   hard and complex functions

Video

How   the video is presented

Landscape   16:9

Compression   method

H.264/H.265

Frame   rate

Main   stream (HD): 2560*1440P@15fps

Substream   (SD): 1920*1080@10 fps

resolution

400W(1920*1080)   200W(1920*1080)

illuminance

O.O2Lux@(2.0,AGC   ON),0Lux with IR

Video   bitrate

Main   stream (HD): 1Mbps

Substream   (SD): 384Kbps

lens

Optional   (3.6/6/8mm).

Basic   functionality

Mirroring/flipping

Support

Noise   reduction/dynamic range

3D   noise reduction/72DB

Mobile   tracking

Support

Voice   intercom

Support   two-way voice intercom, echo cancellation

Audio   input

1-MIC

Audio   output

1-   Speaker

Anti-flicker

Support   outdoor/50 Hz/60Hz three types

Light

Network   port indicator

Infrared   light interface

Support   infrared light board access

Night   vision mode

IR-CUT   switches automatically

WIFI   connection

2.4G,5G

Wired   connection

Optional

How   to add it

Support   QR code scanning, fast matching, AP, wired connection

Network   protocol

HTTP,HTPPS,TCP,IPV4,IPV6,UDP,RTSP,ICMP,RTP,DHCP,A

RP,DNS,QoS

Motion   detection

Support

Restore   recognition

Support

Local   storage

Support  TF card storage continuous recording/event   recording, up to 128G TF card

Value-added   services

Tuya   cloud storage

Support   continuous recording/event recording

Amazon   Alexa

Support

Google   assistant

Support

environment

Operating   temperature

0°C   ~ 75°C

Operating   humidity

10%   ~ 95% non-condensing

Support Apps:


1.Tuya Smart( Default)



Packing list:

1. Camera( NO TF card)*1

2. Instructions*1

3. DC 12V 1.5A Power*1

4. Crew bag*1



Package size:

1pcs:184*150*155(mm)

N.W: 0.37KG

28pcs/ctn

size: 550*380*460(mm)

N.W:16.5KG


Support OEM services ,gift box package ,brand logo print.
