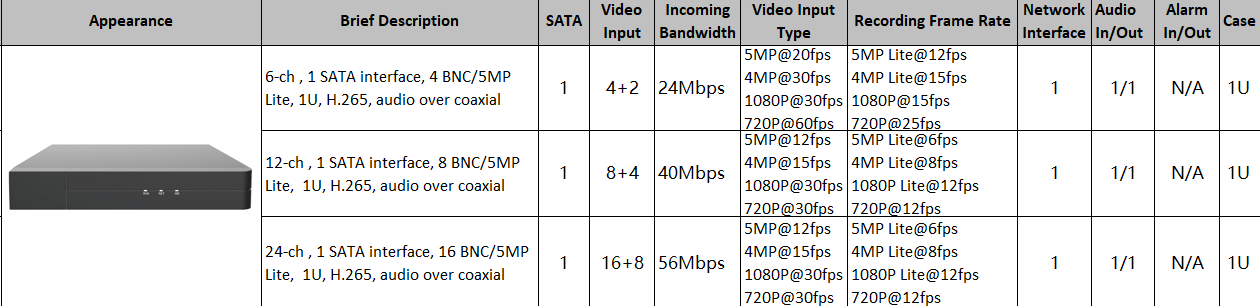

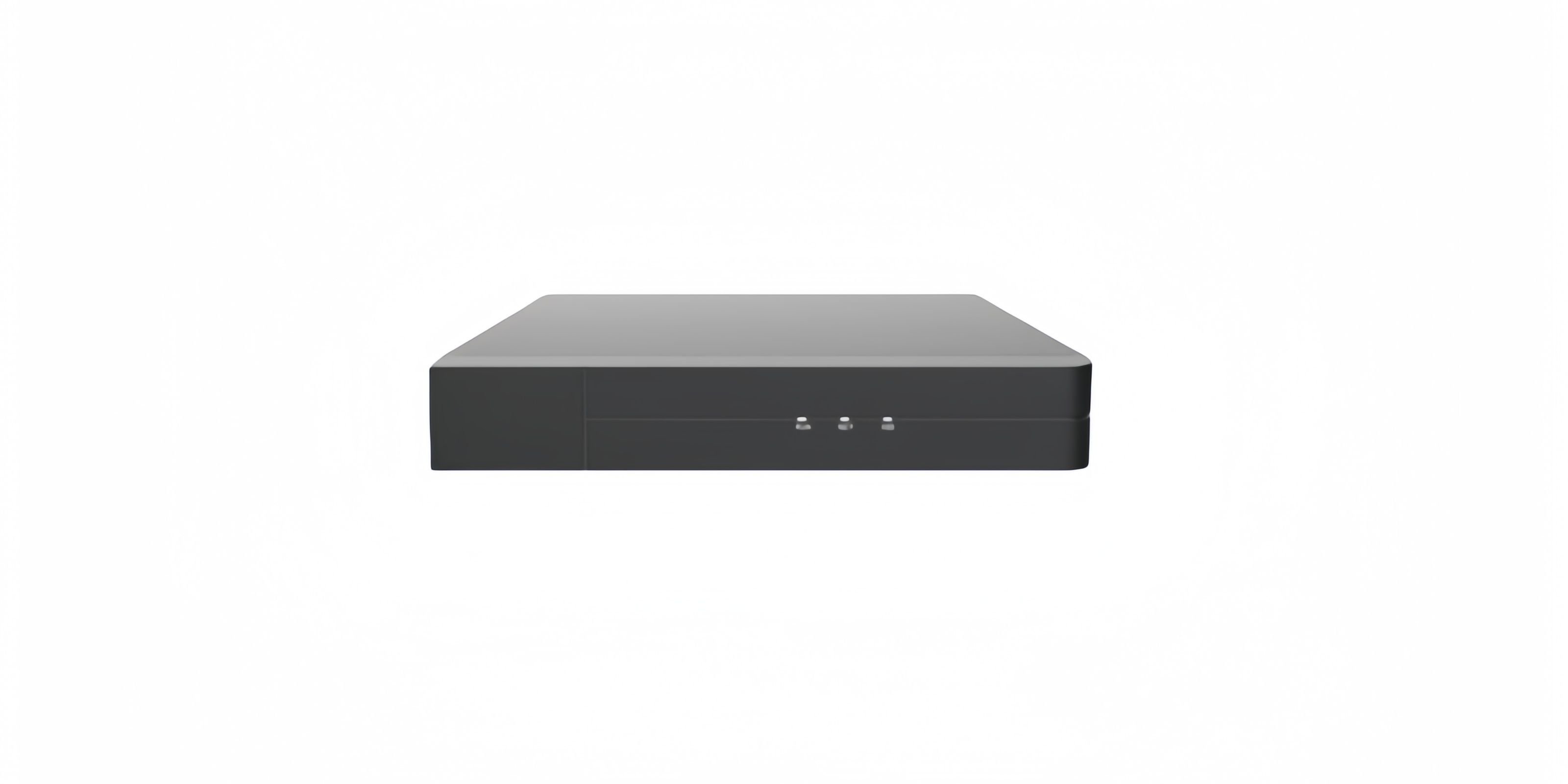

6/12/24CH Security Camera Dvr
6/12/24CH Dvr Recorder For Tv 5MN H.265 5IN1 Hybrid XVR
● Support H.265/H.264 video formats
● Support audio over coaxial cable
● Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
● 4-channel BNC input
● Support 1-ch HDMI output, 1-ch VGA output at up to 1920*1080
● Long transmission distance over coax cable
| Video/Audio Input | |
| Analog Video Input | 4-ch, BNC |
| IP Video Input | 2-ch(only IP up to 6ch), each channel up to 4MP |
| Supported Analog Camera Types | Support AHD input: |
| 5MP@20fps(The first channel) | |
| 5MP@12fps | |
| 4MP@30fps | |
| 1080P@30fps | |
| 720P@60fps | |
| Support TVI input: | |
| 5MP@20fps(The first channel) | |
| 5MP@12fps | |
| 4MP@30fps | |
| 1080P@30fps | |
| 720P@60fps | |
| Support CVI input: | |
| 5MP@20fps(The first channel) | |
| 4MP@30fps | |
| 1080P@30fps | |
| 720P@30fps | |
| Support CVBS input | |
| Audio Input | 1-ch, RCA |
| Two-way Audio | 1-ch, RCA |
| Network | |
| Incoming Bandwidth | 48Mbps |
| Outgoing Bandwidth | 60Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE |
| Video/Audio Output | |
| VGA Output | 1920×1080/60Hz, 1920×1080/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
| HDMI Output | 1920×1080/60Hz, 1920×1080/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
| Audio Output | 1-ch, RCA |
| Synchronous Playback | 4-ch |
| Encoding | |
| Recording Resolution | 5MP Lite/4MP Lite/1080P/720P/4CIF/CIF |
| Recording Frame Rate | Main stream: |
| 5MP Lite@12fps | |
| 4MP Lite@15fps | |
| 2MP@15fps | |
| 720P@25fps | |
| Sub stream: | |
| D1@25fps(Max) | |
| Hard Disk | |
| SATA | 1 SATA interface |
| Capacity | Up to 8TB for each HDD |
| External Interface | |
| Network Interface | 1RJ45 10M/100M self-adaptive Ethernet Interface |
| USB Interface | Rear panel:2 x USB2.0 |
| General | |
| Power Supply | 12V DC |
| Power Consumption: ≤ 8 W( without HDD ) | |
| Working Environment | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) |
| Dimensions(W×D×H) | 260mm × 218mm × 47mm (10.2″ × 8.6″ × 1.9″) |
| Weight ( without HDD ) | ≤1.1 Kg ( 2.42lb ) |
